Instruction Placement

The new instruction placements let you display field description “above the fields” or in a “tooltip”. It can be selected in the “Instructions Placement” field group setting.

Settings

Render this title on edit post screen

Field groups with a lower order will appear first

Shown in field group list

Select items to hide them from the edit screen.

Select user roles that are allowed to view and edit this field group in post edition

Add custom meta data to the field group.

1

View raw field group data.

Array
(
    [ID] => 37
    [key] => group_5f20935b9a777
    [title] => Field Group
    [fields] => Array()
    [location] => Array
         (
             [0] => Array
                 (
                     [0] => Array
                         (
                             [param] => post_type
                             [operator] => ==
                             [value] => post
                         )
                 )
         )
    [menu_order] => 0
    [position] => normal
    [style] => default
    [label_placement] => left
    [instruction_placement] => acfe_instructions_tooltip
    [hide_on_screen] => Array()
    [active] => 1
    [description] =>
    [acfe_display_title] =>
    [acfe_autosync] =>
    [acfe_permissions] =>
    [acfe_meta] => Array()
    [acfe_note] =>
    [_valid] => 1
)
WP_Post Object
(
    [ID] => 37
    [post_author] => 1
    [post_date] => 2020-07-28 23:06:48
    [post_date_gmt] => 2020-07-28 21:06:48
    [post_content] => a:13:{s:8:"location";a:1:{i:0;a:1:{i:0;a:3:{s:5:"param";s:9:"post_type";s:8:"operator";s:2:"==";s:5:"value";s:4:"post";}}}s:8:"position";s:6:"normal";s:5:"style";s:7:"default";s:15:"label_placement";s:4:"left";s:21:"instruction_placement";s:25:"acfe_instructions_tooltip";s:14:"hide_on_screen";a:1:{i:0;s:11:"the_content";}s:11:"description";s:0:"";s:18:"acfe_display_title";s:0:"";s:13:"acfe_autosync";s:0:"";s:16:"acfe_permissions";s:0:"";s:9:"acfe_form";i:0;s:9:"acfe_meta";a:2:{s:13:"5f3a7307cc3ba";a:2:{s:13:"acfe_meta_key";s:3:"foo";s:15:"acfe_meta_value";s:3:"bar";}s:13:"5f3a730dcc3bb";a:2:{s:13:"acfe_meta_key";s:3:"key";s:15:"acfe_meta_value";s:5:"value";}}s:9:"acfe_note";s:0:"";}
    [post_title] => Field Group
    [post_excerpt] => field-group
    [post_status] => publish
    [comment_status] => closed
    [ping_status] => closed
    [post_password] =>
    [post_name] => group_5f20935b9a777
    [to_ping] =>
    [pinged] =>
    [post_modified] => 2020-08-17 14:07:55
    [post_modified_gmt] => 2020-08-17 12:07:55
    [post_content_filtered] =>
    [post_parent] => 0
    [guid] => /?post_type=acf-field-group&p=37
    [menu_order] => 0
    [post_type] => acf-field-group
    [post_mime_type] =>
    [comment_count] => 0
    [filter] => raw
)

Add personal note. Only visible to administrators

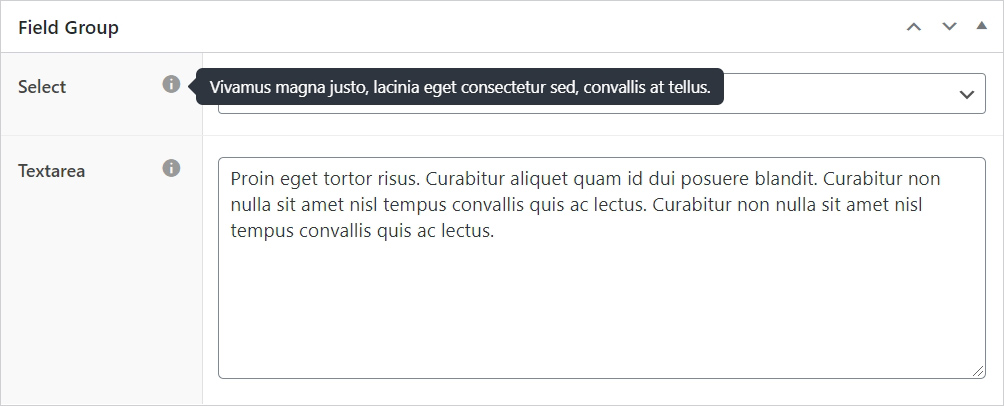

Field Group Render

Field Group

Donec sollicitudin molestie malesuada.

Donec sollicitudin molestie malesuada.

Donec sollicitudin molestie malesuada.

Donec sollicitudin molestie malesuada.

Set Settings in PHP

It is possible to set this setting in PHP using the acf/load_field_group hook. Note that this hook is used everywhere, including in ACF admin and tools screen. Which means the setting will be used when exporting the field group.

To avoid that behavior, you can use the acfe_is_admin_screen() function as condition. Usage example:

add_filter('acf/load_field_group', 'my_acf_field_group');
function my_acf_field_group($field_group){

    // Bail early if in ACF admin/tool screen
    if(acfe_is_admin_screen())
        return $field_group;

    // Target a specific key
    if($field_group['key'] !== 'group_5f20935b9a777')
        return $field_group;

    // Settings
    $field_group['instruction_placement'] = 'tooltip'; // tooltip | above_fields

    // Return
    return $field_group;

}

Retrieve Settings

Instructions Placement settings are saved in the Field Group array, under instruction_placement key. It can be retrieved using acf_get_field_group(). Usage example:

$field_group = acf_get_field_group('group_5f20935b9a777');

/*
 * [position] => normal
 * ...
 * [instruction_placement] => acfe_instructions_tooltip
 * ...
 */
